Why Choose the VANQUISH 560?
\n\nPark, Field, Beach & User Profile
\n\n Search modes for common detecting locations plus a customizable User Profile for quick access to your preferred settings.\n
\nV12X Coil Included
\n\n The included V12X 12\" x 9\" Double-D elliptical coil increases ground coverage while maintaining sensitivity and control.\n
\nBluetooth LE Audio
\n\n Bluetooth LE Audio with LC3 codec supports low-latency wireless audio when paired with compatible audio devices.\n
\nFive Target Tones
\n\n Five distinct target tones provide sharper audio separation and help identify targets more intuitively.\n
\nFour Iron Bias Levels
\n\n Four Iron Bias levels give you more control over how iron signals are handled in trash-filled ground.\n
\n30 Discrimination Segments
\n\n Thirty discrimination segments help you fine-tune target acceptance and reject unwanted signals.\n
\nRed LED Monochrome Display
\n\n The monochrome LCD display with backlight is designed for better visibility in low-light conditions.\n
\nBuilt-In Flashlight & Vibration
\n\n A built-in flashlight, keypad backlight, and handgrip vibration help support detecting in changing conditions.\n
\nRechargeable Battery
\n\n The VANQUISH 560 uses an internal lithium-ion rechargeable battery and delivers up to 10 hours of run time on a full charge.\n
\nVANQUISH 560 Tech Specs
\n\n| Search Modes | \nBeach, Park, Field, User Profile | \n
|---|---|
| Operation Frequency | \nMulti-IQ | \n
| Sensitivity | \n10 Levels | \n
| Noise Cancel | \nAuto | \n
| Wireless Audio | \nBluetooth LE Audio with LC3 Codec | \n
| Volume Control | \n10 Levels | \n
| Ferrous Volume | \n10 Levels | \n
| Target Tones | \n5 Tones | \n
| Audio Output Options | \nBuilt-in loudspeaker, wired 3.5 mm / 1/8\" headphones, Bluetooth LE Audio | \n
| Discrimination Segments | \n30 Segments | \n
| Target IDs | \nFerrous: -19 to 0; Non-Ferrous: 1 to 99 | \n
| Depth Indicator | \n5 Levels | \n
| Iron Bias | \n4 Levels | \n
| Length | \nExtended: 142 cm / 56 in; Collapsed: 79 cm / 31 in | \n
| Weight | \n1.26 kg / 2.6 lbs | \n
| Operating Temperature Range | \n-10°C to +40°C / +14°F to +104°F | \n
| Storage Temperature Range | \n-20°C to +70°C / -4°F to +158°F | \n
| Waterproof | \nIP68 waterproof to 5 m / 16 ft | \n
| Display | \nMonochrome LCD | \n
| Display Backlight | \nYes | \n
| Keypad Backlight | \nYes | \n
| Flashlight | \nYes | \n
| Vibration | \nYes | \n
| Key Technologies | \nMulti-IQ, Bluetooth LE Audio with LC3 Codec | \n
| Warranty | \n3 Years Control Box and Coil | \n
| Standard Coil | \nV12X 12\" x 9\" Double-D Elliptical | \n
| Supplied Battery | \nInternal Lithium-Ion Rechargeable | \n
| Supplied Accessories | \nV12X 12\" x 9\" Double-D Elliptical Coil, Charger Cable, Wired Headphones | \n
The Story

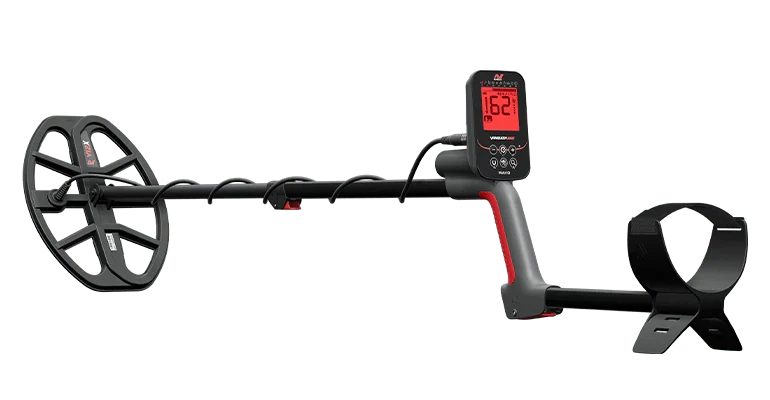

Minelab VANQUISH 560 Metal Detector
The VANQUISH 560 sets a higher standard in the VANQUISH series with increased power, precision, and control. Built around Minelab’s proven Multi-IQ technology, it detects across multiple frequencies simultaneously for accurate target response across changing ground conditions. With the V12X 12" x 9" Double-D elliptical coil, IP68 waterproof protection, Bluetooth LE Audio, five target tones, four Iron Bias levels, and a red LED monochrome display, the VANQUISH 560 is built for serious detecting without complicated setup.
What’s Included
Multi-IQ Technology
Minelab’s Multi-IQ simultaneous multiple frequency technology gives the VANQUISH 560 the power of multiple detectors working at the same time. There is no need to switch frequencies or second-guess your setup — turn it on, choose your search mode, and start detecting across parks, fields, beaches, coins, jewelry, and mixed ground conditions.
Search Modes
With Park, Field, Beach and a customizable User Profile, your detector is ready for any ground you explore. These modes let you adapt to busy sites, wide fields, or challenging shorelines, while the User Profile gives you quick access to your preferred settings.
Waterproof to 5 m / 16 ft
With an IP68 rating, the VANQUISH 560 is fully waterproof up to 5 m / 16 ft. It is made for creeks, shorelines, rain-soaked ground, wet terrain, and unpredictable weather without giving up performance.
Sensitivity and Discrimination
Ten sensitivity levels and 30 discrimination segments provide advanced control over how the detector responds to both ground conditions and metal targets. Adjust sensitivity to detect faint signals or stabilize performance in difficult soils, while discrimination helps isolate desired metals.
Volume, Target Tones and Iron Bias
Ten volume levels for both overall volume and ferrous tone response, plus five distinct target tones, give you greater control over how signals are heard. Four Iron Bias levels help control how iron signals are handled, improving clarity in trash-filled ground and helping valuable targets stand out.
Watch the VANQUISH 60 Series Video
Why Choose the VANQUISH 560?
Park, Field, Beach & User Profile
Search modes for common detecting locations plus a customizable User Profile for quick access to your preferred settings.
V12X Coil Included
The included V12X 12" x 9" Double-D elliptical coil increases ground coverage while maintaining sensitivity and control.
Bluetooth LE Audio
Bluetooth LE Audio with LC3 codec supports low-latency wireless audio when paired with compatible audio devices.
Five Target Tones
Five distinct target tones provide sharper audio separation and help identify targets more intuitively.
Four Iron Bias Levels
Four Iron Bias levels give you more control over how iron signals are handled in trash-filled ground.
30 Discrimination Segments
Thirty discrimination segments help you fine-tune target acceptance and reject unwanted signals.
Red LED Monochrome Display
The monochrome LCD display with backlight is designed for better visibility in low-light conditions.
Built-In Flashlight & Vibration
A built-in flashlight, keypad backlight, and handgrip vibration help support detecting in changing conditions.
Rechargeable Battery
The VANQUISH 560 uses an internal lithium-ion rechargeable battery and delivers up to 10 hours of run time on a full charge.
VANQUISH 560 Tech Specs
| Search Modes | Beach, Park, Field, User Profile |
|---|---|
| Operation Frequency | Multi-IQ |
| Sensitivity | 10 Levels |
| Noise Cancel | Auto |
| Wireless Audio | Bluetooth LE Audio with LC3 Codec |
| Volume Control | 10 Levels |
| Ferrous Volume | 10 Levels |
| Target Tones | 5 Tones |
| Audio Output Options | Built-in loudspeaker, wired 3.5 mm / 1/8" headphones, Bluetooth LE Audio |
| Discrimination Segments | 30 Segments |
| Target IDs | Ferrous: -19 to 0; Non-Ferrous: 1 to 99 |
| Depth Indicator | 5 Levels |
| Iron Bias | 4 Levels |
| Length | Extended: 142 cm / 56 in; Collapsed: 79 cm / 31 in |
| Weight | 1.26 kg / 2.6 lbs |
| Operating Temperature Range | -10°C to +40°C / +14°F to +104°F |
| Storage Temperature Range | -20°C to +70°C / -4°F to +158°F |
| Waterproof | IP68 waterproof to 5 m / 16 ft |
| Display | Monochrome LCD |
| Display Backlight | Yes |
| Keypad Backlight | Yes |
| Flashlight | Yes |
| Vibration | Yes |
| Key Technologies | Multi-IQ, Bluetooth LE Audio with LC3 Codec |
| Warranty | 3 Years Control Box and Coil |
| Standard Coil | V12X 12" x 9" Double-D Elliptical |
| Supplied Battery | Internal Lithium-Ion Rechargeable |
| Supplied Accessories | V12X 12" x 9" Double-D Elliptical Coil, Charger Cable, Wired Headphones |
Description
Minelab VANQUISH 560 Metal Detector
The VANQUISH 560 sets a higher standard in the VANQUISH series with increased power, precision, and control. Built around Minelab’s proven Multi-IQ technology, it detects across multiple frequencies simultaneously for accurate target response across changing ground conditions. With the V12X 12" x 9" Double-D elliptical coil, IP68 waterproof protection, Bluetooth LE Audio, five target tones, four Iron Bias levels, and a red LED monochrome display, the VANQUISH 560 is built for serious detecting without complicated setup.
What’s Included
Multi-IQ Technology
Minelab’s Multi-IQ simultaneous multiple frequency technology gives the VANQUISH 560 the power of multiple detectors working at the same time. There is no need to switch frequencies or second-guess your setup — turn it on, choose your search mode, and start detecting across parks, fields, beaches, coins, jewelry, and mixed ground conditions.
Search Modes
With Park, Field, Beach and a customizable User Profile, your detector is ready for any ground you explore. These modes let you adapt to busy sites, wide fields, or challenging shorelines, while the User Profile gives you quick access to your preferred settings.
Waterproof to 5 m / 16 ft
With an IP68 rating, the VANQUISH 560 is fully waterproof up to 5 m / 16 ft. It is made for creeks, shorelines, rain-soaked ground, wet terrain, and unpredictable weather without giving up performance.
Sensitivity and Discrimination
Ten sensitivity levels and 30 discrimination segments provide advanced control over how the detector responds to both ground conditions and metal targets. Adjust sensitivity to detect faint signals or stabilize performance in difficult soils, while discrimination helps isolate desired metals.
Volume, Target Tones and Iron Bias
Ten volume levels for both overall volume and ferrous tone response, plus five distinct target tones, give you greater control over how signals are heard. Four Iron Bias levels help control how iron signals are handled, improving clarity in trash-filled ground and helping valuable targets stand out.
Watch the VANQUISH 60 Series Video
Why Choose the VANQUISH 560?
Park, Field, Beach & User Profile
Search modes for common detecting locations plus a customizable User Profile for quick access to your preferred settings.
V12X Coil Included
The included V12X 12" x 9" Double-D elliptical coil increases ground coverage while maintaining sensitivity and control.
Bluetooth LE Audio
Bluetooth LE Audio with LC3 codec supports low-latency wireless audio when paired with compatible audio devices.
Five Target Tones
Five distinct target tones provide sharper audio separation and help identify targets more intuitively.
Four Iron Bias Levels
Four Iron Bias levels give you more control over how iron signals are handled in trash-filled ground.
30 Discrimination Segments
Thirty discrimination segments help you fine-tune target acceptance and reject unwanted signals.
Red LED Monochrome Display
The monochrome LCD display with backlight is designed for better visibility in low-light conditions.
Built-In Flashlight & Vibration
A built-in flashlight, keypad backlight, and handgrip vibration help support detecting in changing conditions.
Rechargeable Battery
The VANQUISH 560 uses an internal lithium-ion rechargeable battery and delivers up to 10 hours of run time on a full charge.
VANQUISH 560 Tech Specs
| Search Modes | Beach, Park, Field, User Profile |
|---|---|
| Operation Frequency | Multi-IQ |
| Sensitivity | 10 Levels |
| Noise Cancel | Auto |
| Wireless Audio | Bluetooth LE Audio with LC3 Codec |
| Volume Control | 10 Levels |
| Ferrous Volume | 10 Levels |
| Target Tones | 5 Tones |
| Audio Output Options | Built-in loudspeaker, wired 3.5 mm / 1/8" headphones, Bluetooth LE Audio |
| Discrimination Segments | 30 Segments |
| Target IDs | Ferrous: -19 to 0; Non-Ferrous: 1 to 99 |
| Depth Indicator | 5 Levels |
| Iron Bias | 4 Levels |
| Length | Extended: 142 cm / 56 in; Collapsed: 79 cm / 31 in |
| Weight | 1.26 kg / 2.6 lbs |
| Operating Temperature Range | -10°C to +40°C / +14°F to +104°F |
| Storage Temperature Range | -20°C to +70°C / -4°F to +158°F |
| Waterproof | IP68 waterproof to 5 m / 16 ft |
| Display | Monochrome LCD |
| Display Backlight | Yes |
| Keypad Backlight | Yes |
| Flashlight | Yes |
| Vibration | Yes |
| Key Technologies | Multi-IQ, Bluetooth LE Audio with LC3 Codec |
| Warranty | 3 Years Control Box and Coil |
| Standard Coil | V12X 12" x 9" Double-D Elliptical |
| Supplied Battery | Internal Lithium-Ion Rechargeable |
| Supplied Accessories | V12X 12" x 9" Double-D Elliptical Coil, Charger Cable, Wired Headphones |
